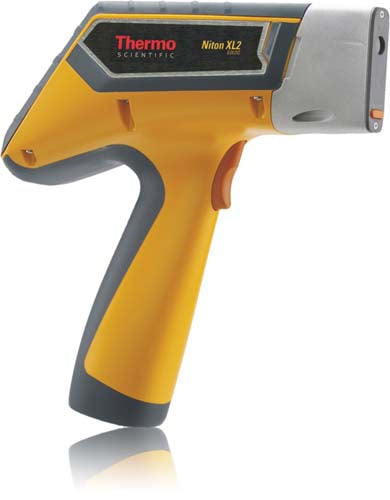

Thermo Scientific Niton XL2 980 GOLDD XRF Analyzer
Thermo Scientific Niton XL2 Series x-ray fluorescence (XRF) analyzers are purpose-built for your most demanding needs.
The performance-leading Niton XL2 GOLDD™ is a lightweight, rugged, handheld XRF analyzer perfectly suited for your particular testing applications.
Ergonomically designed and featuring daylight-readable icons, the Niton XL2 provides customizable menus for ease of use, multi-language options, and a standard analytical range of more than 25 elements, plus light element detection (Mg-S) with the Niton XL2 GOLDD.
The Niton XL2 XRF analyzer provide you with many distinct advantages:
- Very easy to use - even by non-technical personnel
- Rugged design for real-world industrial applications
- Truly nondestructive test
- From turn on to trigger pull to results in seconds
- Confident analysis with technology from the industry leader
More than 30,000 Thermo Scientific Niton XRF analyzers can be found at work in more than 75 countries on 6 continents.
Niton XL2 Series - Engineered for the Way You Work
Niton XL2 Series analyzers offer high performance and advanced electronics while maintaining the point-and-shoot simplicity that has been the hallmark of all of our of portable XRF instruments. Sealed against moisture and dust, these analyzers are ruggedly built to withstand the harshest environments - in the field or on the shop floor.
Ergonomically designed and featuring daylight-readable icons, the Niton XL2 analyzer provides customizable menus for ease of use, multi-language options, and a standard analytical range of more than 25 elements, plus light element detection (Mg-S) with the Niton XL2 GOLDD.
What's more, by taking advantage of our standard Thermo Scientific Niton Data Transfer (NDT™) PC software suite, you can:
- Set operator permissions
- Generate custom reports
- Print certificates of analysis to document results
- Operate the analyzer remotely from your PC
Features:
Niton XL2 analyzer - High-performance semiconductor detector
Niton XL2 GOLDD analyzer - Geometrically optimized large area drift detector
Fixed-angle color touch-screen display
USB and Bluetoothcommunications
45 kV miniaturized x-ray tube
Applications:
Niton XL2 analyzer - High-performance semiconductor detector
Niton XL2 GOLDD analyzer - Geometrically optimized large area drift detector
Fixed-angle color touch-screen display
USB and Bluetoothcommunications
45 kV miniaturized x-ray tube
Technical Specifications
| Tube - Precious Metals & Environmetal applications | Ag anode 45 kV maximum 100 µA maximum |
| Detector | High-performance semiconductor |
| System Electronics | 400 MHz ARM 11 CPU\n300 MHz dedicated DSP\n80 MHz ASICS DSP for signal processing\n4096 channel MCA\n64 MB internal system memory/ 128MB interna |
| Display | Fixed angle color touch-screen display |
| Standard Analytical Range | 14 elements including all precious metals |
| Data Storage | Internal >10000 readings with spectra |
| Data Transfer | USB Bluetooth and RS-232 serial communication |
| Security | Password-protected user security |
| Data Entry | Touch-screen keyboard\nUser-programmable pick lists\nOptional wireless remote barcode reader |
| Standard Accessories and\nFeatures | Locking shielded carrying case\nShielded belt holster\nOne 6-cell lithium-ion battery pack\n110/220 VAC battery charger/ AC adaptor\nPC connecti |
| Optional Features and\nAccessories | Thermo Scientific portable test stand\nAdditional battery pack\nWireless portable printer\nBarcode scanner |
| Compliance | CE RoHS |
Dimension
| US | Metric | |
| Size | 10.25 x 11 x 4 in | 256 x 275 x 100 mm |
Weight
| US | Metric | |
| Weight | < 3 lbs 10.7 oz | 1.66 kg |
