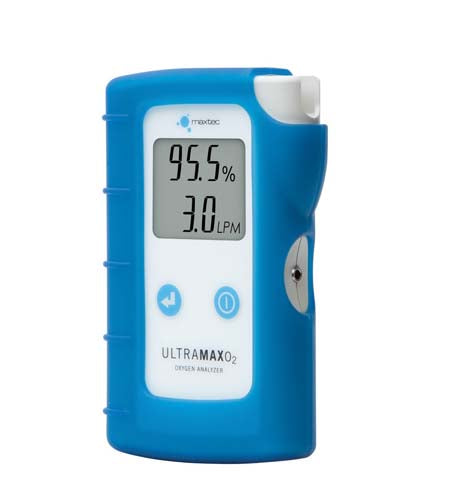

Maxtec UltraMax O2 Oxygen Analyzer
Pine Item #54716
Maxtec is pleased to introduce The UltraMaxO2 oxygen analyzer. The UltraMaxO2 was designed for fast and easy verification of oxygen concentration, flow and outlet pressure of oxygen concentrators. Best of all, the UltraMaxO2 provides unparalleled performance and reliability from its advanced design.
Features:
Accurately measure O2 flow & pressure
No oxygen sensor required
No in-field calibration
Self-diagnostics
Shielded reinforced sample gas inlet port
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals, Data Sheets & Software
Videos
| Measurement Range: (from a concentrator) | 20.9 - 96% |
| Oxygen Measurement Accuracy: | ±1.5% of full scale at constant temperature and optimal flow |
| Oxygen Measurement Resolution: | 0.1% Oxygen |
| Flow Measurement Range: | 0 - 10 LPM |
| Flow Measurement Accuracy: | ±0.2 LPM |
| Flow Measurement Resolution: | 0.1 LPM |
| Pressure Measurement Range: | 0 .5 - 50 PSI (3.4 - 344 Kpa) |
| Pressure Measurement Accuracy: | ±0.5% PSI (±0.5% kPa) |
| Pressure Measurement Resolution: | 0.1 PSI (0.1 up to 199 1 from 200 to 344 kPa) |
| Response Time: | = 17 seconds |
| Warm-up Time: | < 1 second |
| Operating Temperature: | 15°C - 40°C (59°F - 104°F) |
| Pressure: | 800 - 1000 mBars |
| Humidity: | 0 - 95% (non-condensing) |
| Power Requirements: | 2-AA Alkaline batteries (2 x 1.5 volts) |
Dimension
| US | Metric | |
| Dimensions: | 3.16\" x 5.10\" x 1.04\" | 80.3mm x 129.5mm x 26.4mm |
Weight
| US | Metric | |
| Weight: | 0.4 lbs | 181 grams |
