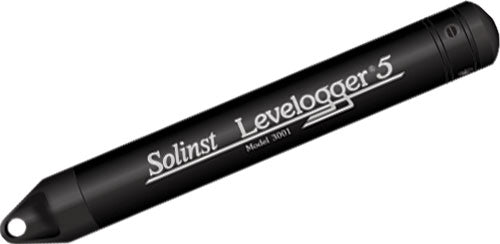

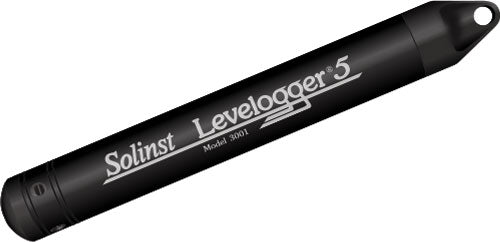

3001 Levelogger 5, M10
The Hastelloy sensor has great performance and response times in extreme temperature and pressure environments. It can withstand 2 times over-pressure without permanent damage. The Levelogger 5 comes in different pressure ranges to suit expected water level fluctuations, from 5 m to 200 m (15 ft. to 600 ft.).
The sealed unit contains a temperature sensor that gives accurate readings (±0.05ºC) and provides temperature compensated water level values. The Levelogger 5 has a lithium battery that lasts 10 years based on 1 reading every minute. The internal datalogger has memory for 150,000 level and temperature readings.
For use in seawater, and for extra corrosion, abrasion and chemical resistance, the 22 mm x 160 mm (7/8" x 6.3") stainless steel housing has a durable coating (inside and out) baked-on using polymerization technology. The Faraday cage design provides protection against power surges or lightning strikes. The Levelogger 5 operates in temperatures from -20ºC to 80ºC (0ºC to 50ºC is the temperature compensation range).
Features:
Highly stable communication: single-eye optical interface—easier to clean, more scratch resistant
Large memory: 150,000 sets of data
Strong, robust design: double o-ring seals for increased leakage protection
High thermistor sensitivity: upgraded platinum RTD
Superior protection in harsh environments: corrosion and abrasion resistant coating—inside and out
Intuitive Levelogger Software: Diagnostic Utility for more proactive user “self-tests”
Applications:
Aquifer characterization: pumping tests, slug tests, etc.
Watershed, drainage basin and recharge monitoring
Stream gauging, lake and reservoir management
Harbour and tidal fluctuation measurement
Wetlands and stormwater run-off monitoring
Water supply and tank level measurement
Mine water and landfill leachate management
Long-term water level monitoring in wells, surface water bodies and seawater environments
Specifications
| Level Sensor: Accuracy: Stability of Readings: Resolution: Units of Measure: Normalization: Temp. Comp. Range: |
± 0.05% FS (Barologger 5: ± 0.05 kPa) Superior, low noise 0.002% FS to 0.0006% FS m, cm, ft., psi, kPa, bar, ºC. ºF (Barologger 5: psi, kPa, mbar, ºC, ºF) Automatic Temperature Compensation 0º to 50ºC (Barologger 5: -10 to +50ºC) |
| Temperature Sensor: Temp. Sensor Accuracy: Temp. Sensor Resolution: |
Platinum Resistance Temperature Detector (RTD) ± 0.05ºC 0.003°C |
| Battery Life: Clock Accuracy (typical): Operating Temperature: |
10 Years – based on 1 reading/minute ± 1 minute/year (-20ºC to 80ºC) -20ºC to 80ºC |
| Maximum # Readings: Memory Mode: Communication: |
150,000 sets of readings Slate and Continuous Optical high-speed: USB, SDI-12 57,600 bps with USB |
| Size: Weight: Corrosion Resistance: Other Wetted Materials: |
22 mm x 160 mm (7/8" x 6.3") 146 grams (5.2 oz) Baked-on coating using polymerization technology (inside and out) Delrin®, Viton®, 316L stainless steel, Hastelloy, PFAS-free PTFE coating |
| Sampling Modes: Measurement Rates: Barometric Compensation: |
Linear, Event & User-Selectable with Repeat Mode, Future Start, Future Stop, Real-Time View 1/8 sec to 99 hrs Software Wizard and one Barologger 5 in local area (approx. 30 km/20 miles radius) |
