Thermo Scientific

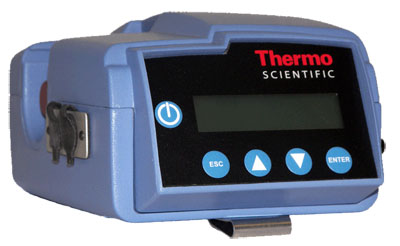

Thermo PDR 1500
Pine Item #51349
The Thermo Scientific pDR1500 is one of the world's smallest and most versatile direct-reding personal aerosol monitors. This unit offers powerful, increased capabilities and a compact design for enhanced portability. Designed to provide accurate, real-time measurement of airborne particulate concentrations for numerous applications.
Features:
True volumetric flow control
Interchangeable cyclones for higher accuracy cut points
Personal aerosol instrument with benchtop performance
Full compensation for environmental variables
Suitable for NIOSH Methods 0500 and 0600t
Applications:
Site Remediation
Size Discrimantion
Mass Validation
Exposure Modeling
Protection of Asthma Patients
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals, Data Sheets & Software
| Concentration Measurement Range | 0.001 to 400 mg/m^3 range (auto ranging) |
| Accuracy | 1.5 x 10^-6 to 0.6 m^-1 (approx) @ lambda= 880nm (not displayed) |
| Resolution | 0.1% of reading or 0.001 mg/m^3, whichever is larger |
| Particle Size Range of Max. Response | 0.1 to 10 μm |
| Flow Rate Range | 1.0 to 3.5 liters/minute |
| Aerodynamic Particle Cut-Point Range | 1.0 to 10 μm |
| Logged Data | averaging concentration, temperature, RH, barometric pressure, time/date, and data point number |
| Readout Display | LCD 16 characters (4 mm height) x 2 lines |
| Internal Battery Run Time | 4 AA alkaline, > 24 hr run time, 5 V peak-to-peak @ 1.2 L/min; > 6 hour @ 3.5 L/min |
| Dimensions | US: 7.1 x 5.6 x 3.3 in. Metric: 181 X 143 x 84mm |
| Weight | US: 41oz. Metric: 1.2kg |
